Blast Hole Liners & Tubes – Safety is Priority
We manufacture high-quality reinforced PVC blast tubes (blast bags) for the open-cast coal mining industry worldwide. Designed and tested in conjunction with Glencore Mining, these blast tubes have been an integral part of the safe blasting of hot and venting holes since 2021.
Where and When to Use Blast Tubes
- ✔ Safety is paramount.
- ✔ Holes are hot or venting.
- ✔ Hot holes ranging 80–120°C.
- ✔ Using water or cooling agents has no effect.
Benefits of Using Blast Sleeves
- ✔ Safe charging of hot holes.
- ✔ Large areas that were previously too hot can now be charged.
- ✔ PVC sleeves have an insulating effect of 20–40°C.
- ✔ Retains water, protecting the bulk from the heat.
- ✔ Holes can remain safely charged for longer.
Blast Sleeve Sizes & Technical Specs
All blast bags are manufactured from reinforced PVC of 550g, 700g or 800g depending on hole size and bag length. Bags are made for drill-hole diameters of 127mm, 171mm, 200mm and 250mm, with bag lengths increasing in 2m increments. Bags are made slightly larger than the hole to friction-fit the sides, safely supporting the explosives.
| Hole Size | Bag Diameter | Bag Lengths |
|---|---|---|
| 127mm | 143mm | 6m to 20m |
| 171mm | 198mm | 6m to 24m |
| 200mm | 251mm | 6m to 36m |
| 250mm | 251mm | 6m to 36m |
Available in other sizes on request.
Built to Work – Smart Design Features
- ✅ Reinforced PVC – polyester scrim-reinforced for maximum bag strength.
- ✅ Stainless steel eyelets – evenly spaced on a 50mm folded seam to secure ropes.
- ✅ Heat welded – 50mm pressurised lap joint along the tube length for maximum strength.
- ✅ High-frequency welded – 50mm seam at the bottom to seal the bag.
- ✅ Quality control – batch air-tested every 10/100 at the factory.

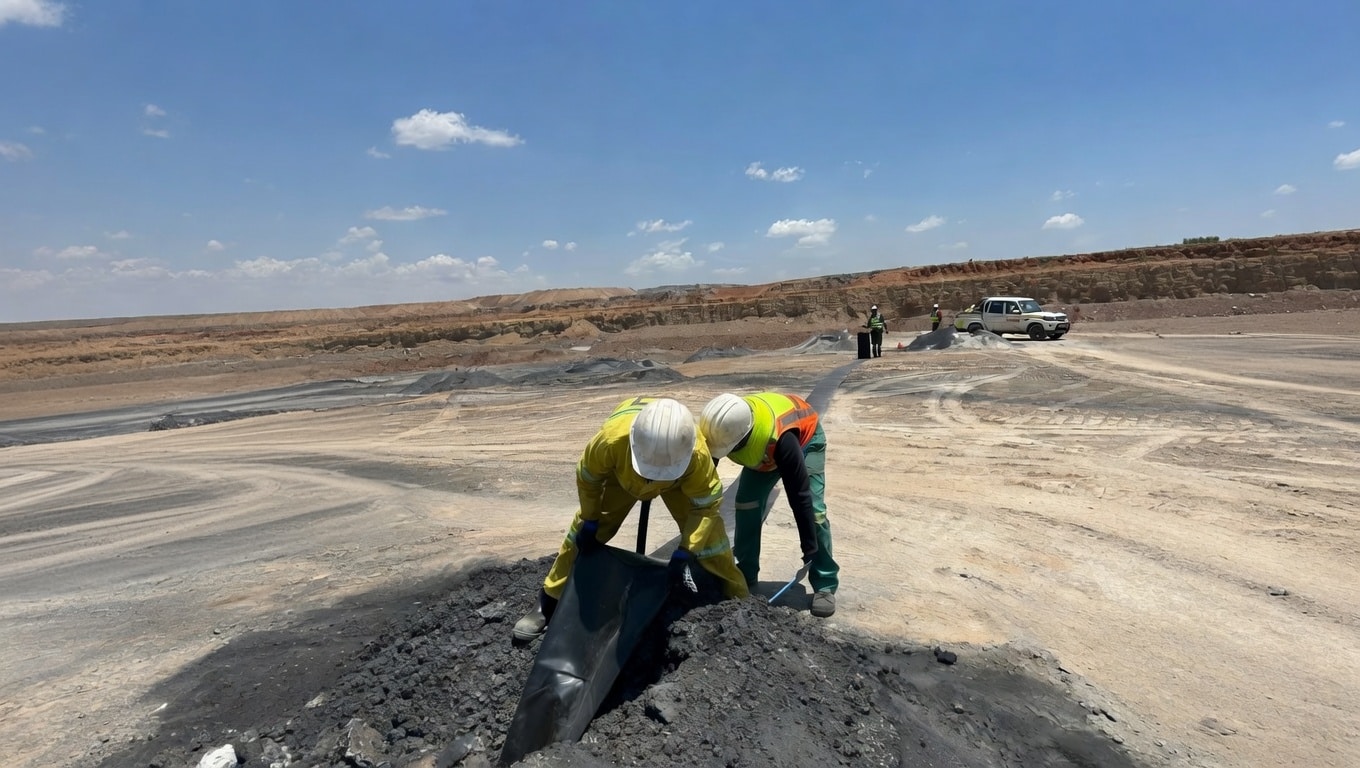

Using Blast Sleeves On Site
- Sleeves arrive rolled up in packs of 5.
- Unrolled and laid flat.
- A knot is tied at the end of the bag.
- Bags are inserted into the holes.
- Secured at the top of the hole using ropes attached to a stick.
- Sensors are placed inside the bag and boosters readied.
- Bags are filled with emulsion.
- Blasting procedures are followed as per normal.
Why Use Hot-Hole Blast Bags?
- Safely charge hot holes up to 120°C.
- Charge large areas that were previously not possible.
- Cost and time saving.
- Protects explosives by controlling water boil-off; insulating effect of 20–40°C.
- No risk of reactivity — explosives sit in a no-tear sealed bag.
- Allows almost 100% of drilled holes to be charged and blasted without incident.
- No chance of hole failure and explosives falling into hot burning workings.
“Reliable and safe hot-hole charging — since 2021.”
